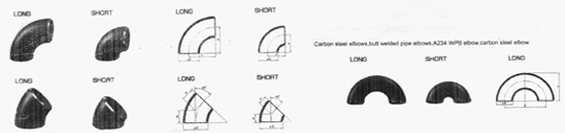

1) Iten: steel elbow
2) Standards: is-1239 part ll, is 3589, ansi B 16.9
3) Si2e:15 m To 600 mm nb
4) Material: m.s.erw,c,s A 234WPB
5) Wall thickness: medium duty(Bclass) & heaw duty(c class), sach 40,sch 80,sch 160
6) Radius:1D& 1.5
7) Angle:45 degree, 90 degree& 180 degree

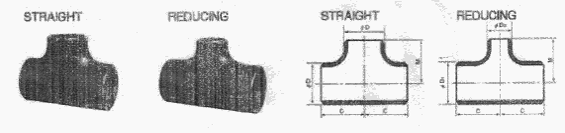

1) Item :tees- equal and reducing
2) Standards: is 1239 pt. 3589 & II Ansi b 16.9.
3) Size: mm nb to 500 mm nb
4) Material: m.s. erw, c.s. a 234 wpb
5) Well thickness: medium duty (B class)& heavy duty(c class, sch 40, sch 80 ,sch 160

A tee also called triplet three way and ”T”.lt can be used to either combine of split a fluid flow most common are tees with same in let and outlet sizes but “ reducing” tees are available as well,

1) Material: m.s. erw / c.s. A234 wpb
2) Radius : as per is 1239 part ll, and Radius 3D ,4D ,5D
3) Bending angle: 11.25 , 22.1/2 ,45 , 90
4) size: 15 mm NB to 500 mm nb
5) well thickness : medium duty (b class)& heavy.(c class), sch 40 , sch 80 , sch 160
6) standards : is- 1239 part ll, radius 3D ,4D ,5D

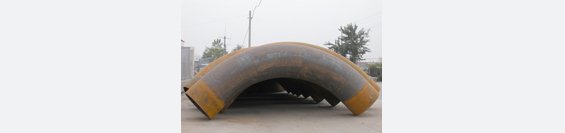

This kind of bend is used to change the direction of run of pipe.lts advantage is that it Can maych long distance transition requirements.

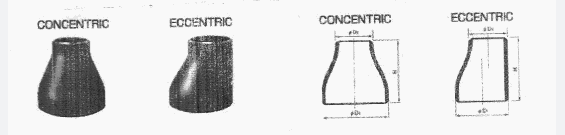

Reducer –concentric and eccentric
1) Item: reducers – concentric and eccentric
2) Standards: is 1239 pt, is 3589 & ll, ansl B 16.9.
3) Size: 15 mm nb to 500 mm nb
4) Material: m.s. erw, c.s.a 234 wpb
5) Wall thickness : medium duty (B class) & heavy duty (c class), sch 40, sch 80,sch 160

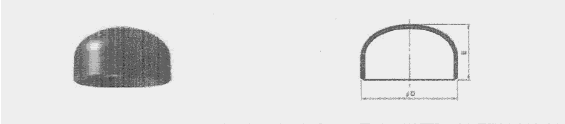

1) ltem : caps
2) standards: ansl b 16.9.
3) size: 15 mm nb to 500 mm nb
4) material: c.s. a 234 wpb
5) wall thickness: sch 40 , sch 80 , sch 160

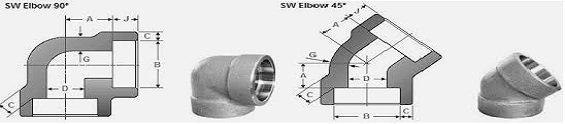

1) Socketweld / Threaded – BSP / NPT
2) Pressure rating – 3000# & 6000#
3) Dimenswions per ANSI B 16.11
4) Materials – Carbon Steer A -105 & S.S.
5) Sizes – 15 To 100 mm NB
